Case Study 1: Reverse Engineering of a Critical Industrial Component
Client Challenge
A leading engineering company faced recurring downtime due to the failure of a critical machine component. The original drawings and manufacturing data were unavailable, and the OEM replacement part had a long lead time and high procurement cost.
Solution by RMAP Engineering Technologies
RMAP Engineering Technologies utilised advanced reverse engineering techniques to recreate the component with high precision, delivering engineering data and a production-ready solution within a significantly shorter timeline than OEM sourcing.
Process Followed
- Detailed inspection and dimensional analysis of the existing component

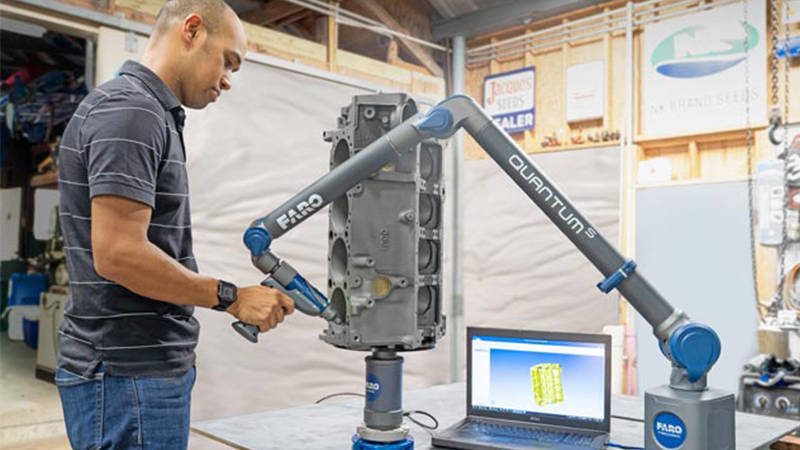

- High-accuracy 3D scanning to capture complex geometries
- Generation of a complete CAD model using reverse engineering software
- Material analysis and identification of critical functional parameters
- Validation through CMM inspection and dimensional verification
- Manufacturing support for prototype and production-ready components
Technologies Used
Results Achieved
The recreated component matched the original design specifications with high precision, ensuring seamless fitment and performance.
The client received engineering data and replacement components significantly faster than sourcing through the original manufacturer.
Reverse engineering reduced procurement costs and eliminated dependency on hard-to-source spare parts.
Complete CAD models, engineering drawings, and inspection reports were generated, enabling future manufacturing and maintenance support.
Conclusion: RMAP Engineering Technologies successfully transformed a worn and undocumented component into a fully engineered digital model and production-ready solution.
Case Study 2: Precision Machined Components for Railway Applications
Client Requirement
A leading railway equipment manufacturer required high-precision machined components for use in railway braking and suspension systems, meeting stringent dimensional tolerances and durability standards.
Challenges
Solution by RMAP Engineering Technologies
Leveraging over 35 years of manufacturing expertise, RMAP Engineering Technologies developed a robust production process combining advanced CNC machining, in-process quality checks, and CMM-verified final inspection.
Manufacturing Process
- Detailed review of customer drawings and specifications
- CNC turning and machining using advanced equipment
- In-process quality checks at critical stages
- Precision dimensional verification using CMM inspection
- Final inspection and documentation before dispatch
Key Capabilities
Results Achieved
All components manufactured within specified tolerances, ensuring reliable assembly and field performance.
Components demonstrated excellent durability under operational railway conditions, reducing maintenance requirements.
Optimised machining processes enabled faster production cycles and improved throughput.
Structured production planning ensured timely delivery, supporting the customer's manufacturing schedule.
Conclusion: RMAP Engineering Technologies successfully delivered precision machined railway components that met stringent industry requirements for quality, reliability, and performance.
